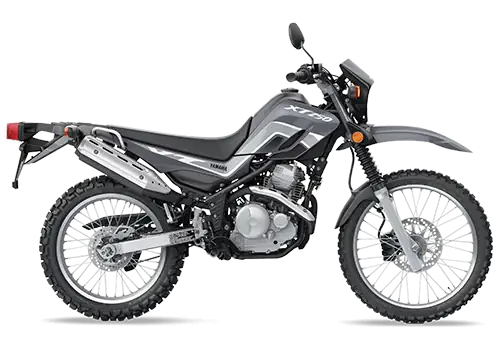

With electric start and a low seat height, the light, nimble and reliable XT250 is built to go wherever you go. On‑ or off‑road.
| Engine Type: | 249cc air-cooled SOHC 4-stroke single; 2 valves |
| Bore x Stroke: | 74.0mm x 58.0mm |
| Compression ratio: | 9.5:1 |
| Fuel Delivery: | Yamaha Fuel Injection (YFI) |
| Transmission: | 5-speed; multiplate wet clutch |
| Final Drive: | Chain |
| Ignition: | TCI: Transistor Controlled Ignition |
| Suspension / Front: | 35mm telescopic fork; 8.9-in travel |
| Suspension / Rear: | Single shock, adjustable preload; 7.1-in travel |
| Brakes / Front: | Single disc, 245mm |
| Brakes / Rear: | Single disc, 203mm |
| Tires / Front: | 2.75-21 |
| Tires / Rear: | 120/80-18 |
| L x W x H: | 84.6 in x 31.7 in x 45.7 in |
| Seat Height: | 32.7 in |
| Wheelbase: | 53.5 in |
| Rake (Caster Angle): | 26.4° |
| Trail: | 4.2 in |
| Maximum Ground Clearance: | 11.2 in |
| Fuel Capacity: | 2.5 gal / CA model, 2.2 gal |
| Wet Weight: | 291 lb |
| Warranty: | 1 Year (Limited Factory Warranty) |
