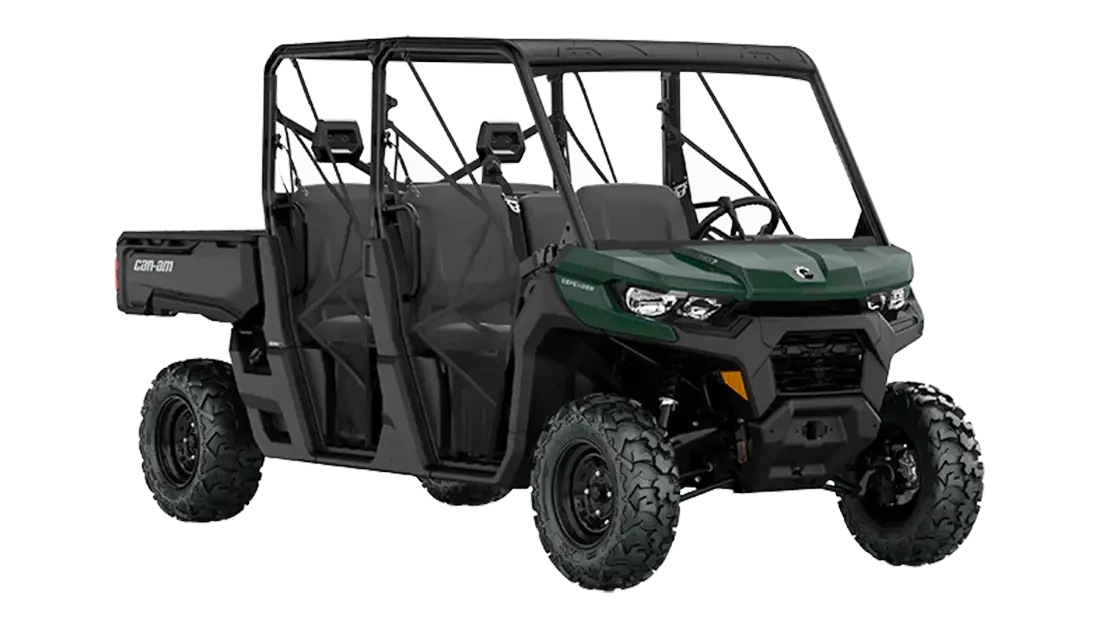

DO IT ALL (AND THEN SOME). Defender MAX is well-equipped from standard to tackle your jobs. Room for 6, 4WD, 1-year warranty, and a punchy Rotax® powertrain. And it's a six-seater that doesn't compromise on turning radius.
| Type: | 52 hp / 41 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid-cooled |
| Fuel Delivery System: | Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI) |
| Transmission: | PDrive primary CVT with engine braking and Electronic Drive Belt Protection L/H/N/R/P |
| Drive Train: | Selectable Turf Mode/2WD/4WD with Visco-Lok† auto-locking front differential |
| Driving Assistance: | Electronic Hill Descent Control ECO™/ECO™ Off/Work modes |
| Power Steering: | N/A |
| Front Suspension: | Double A-arm/10 in. (25.4 cm) travel |
| Front Shocks: | Twin tube gas charged shocks |
| Rear Suspension: | TTA with external sway bar/10 in. (25.4 cm) travel |
| Rear Shocks: | Twin tube gas charged shocks |
| Front Tires: | XPS Trail Force 27 x 9 x 14 in. |
| Rear Tires: | XPS Trail Force 27 x 11 x 14 in. |
| Wheels: | 14 in. cast-aluminum |
| Front: | Dual 220 mm disc brakes with hydraulic twin-piston calipers |
| Rear: | Dual 220 mm disc brakes with hydraulic twin-piston calipers |
| Estimated Dry Weight: | 1,710 lb (775.6 kg) |
| Chassis/Cage: | Profiled cage, ROPS approved |
| L x W x H: | 153.4 x 63.5 x 76 in. (389.6 x 161.2 x 193 cm) |
| Wheelbase: | 115.5 in. (294 cm) |
| Ground Clearance: | 11 in. (28 cm) |
| Cargo Box Dimensions: | 38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm) |
| Cargo Box Capacity: | 1,000 lb (454 kg)/California only: 600 lb (272.2 kg) |
| Tailgate Load Capacity: | 250 lb (113.4 kg) |
| Storage Capacity: | Total: 3.1 gal (11.7 L) Under dash (enclosed pocket): 0.4 gal (1.3 L) Dash: 1.8 gal (6.9 L) Armrests and cup holders: 0.9 gal (3.5 L) |
| Towing Capacity: | 2,500 lb (1,134 kg) |
| Payload Capacity: | 1,750 lb (793.8 kg) |
| Fuel Capacity: | 10.6 gal (40 L) |
| Power Tilt Bed: | N/A |
| Gauge: | 4.5 in. wide digital display: speedometer, tachometer, odometer, trip and hour meters, fuel, gear position, ECO™/ECO™ Off/Work modes, seat belt, diagnostics, clock, battery voltage, engine temperature |
| Battery: | 12 V (18 A/h) |
| Magneto: | 650 W |
| Instrumentation: | Lighter type DC outlet in console (20 A) |
| Lighting: | 140 W lighting output from four 35 W reflectors ensuring wide visibility and LED tail lights |
| Winch: | N/A |
| Seat: | Dual VERSA-PRO bench seats with passenger seats flipping up, underside hooks and contoured bench to improve entrance/exit of the cab |
| Steering Wheel: | Adjustable tilt steering |
| Protection: | Integrated front steel bumper, HMWPE central skid plate |
| Hitch Type: | 2 in. hitch receiver |
