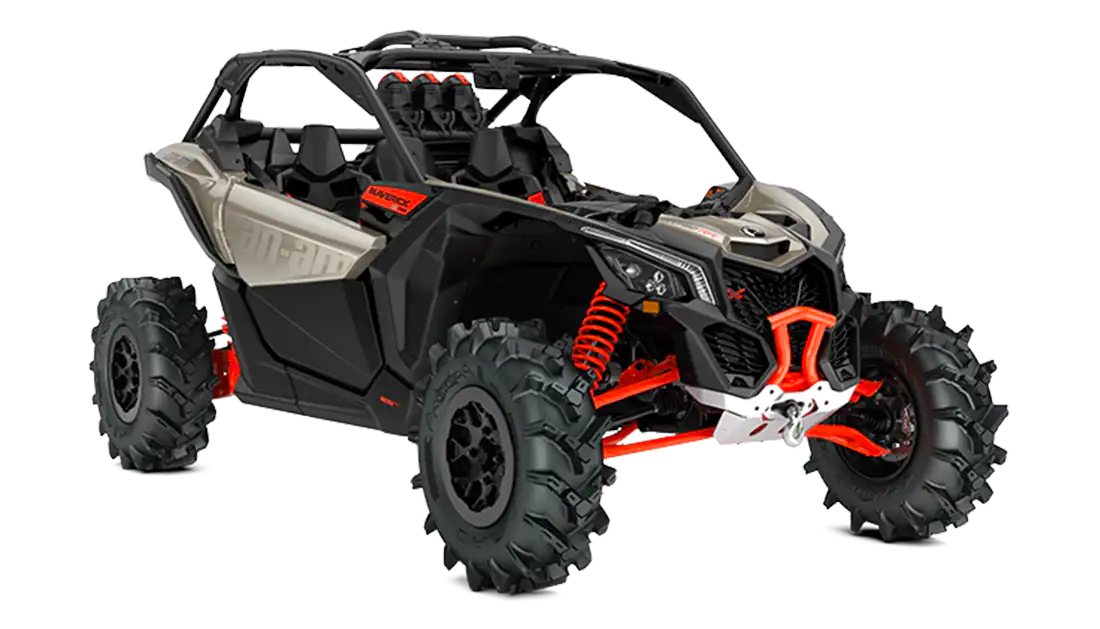

STIR IT UP. Now with the Smart-Lok™ front Differential and mud-specific tuning to haul you through the roughest challenges. Balanced with 64 in. width, 18 in. of suspension travel, and armored 30 in. ITP Cryptid tires for the ultimate in mud performance.
| Type | 200 hp, Rotax ACE (Advanced Combustion E ciency) 900 cc turbocharged triple-cylinder engine, liquid-cooled with integrated intercooler, high-perfomance air lter and strategically positioned engine air intake |
| Fuel Delivery System | Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI) |
| Transmission | PDrive primary and Quick Response System X (QRS-X) CVT, high air ow with strategically positioned CVT air intake and exhaust, L/H/N/R/P |
| Drive Train | Lockable front di erential with exclusive Smart-Lok technology. True 4-mode traction system: 2WD/4WD with front di . lock/4WD MUD/4WD TRAIL |
| Power Steering | High-torque Tri-Mode Dynamic Power Steering (DPS) |
| Front Suspension | Arched double A-arm with sway bar/18 in. (45.7 cm) travel |
| Front Shocks | FOX 2.5 PODIUM piggyback with QS3 compression adjustment |
| Rear Suspension | 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links/18 in. (45.7 cm) travel |
| Rear Shocks | FOX 2.5 PODIUM piggyback with QS3 compression adjustment and bottom-out control |
| Front Tires | ITP Cryptid 30 x 9 x 14 in. |
| Rear Tires | ITP Cryptid 30 x 11 x 14 in. |
| Wheels | 14 in. cast-aluminum with machined nish |
| Front | Dual 262 mm ventilated disc brakes with hydraulic twin-piston calipers |
| Rear | Dual 248 mm ventilated disc brakes with hydraulic twin-piston calipers |
| Estimated Dry Weight | 1,705 lb (773.4 kg) |
| Chassis/Cage | Dual-phase 980 steel |
| L x W x H | 133 x 66.7 x 66.1 in. (337.8 x 169.4 x 167.9 cm) |
| Wheelbase | 102 in. (259.1 cm) |
| Ground Clearance | 14 in. (35.6 cm) |
| Rack Capacity | 200 lb (91 kg) with LinQ™ quick-attach |
| Storage Capacity | Total: 2.5 gal (9.4 L) Glove box: 1.6 gal (6.2 L) Central console: 0.8 gal (2.8 L) Cup holders: 0.1 gal (0.4 L) |
| Fuel Capacity | 10.5 gal (40 L) |
| Gauge | 7.6 in. wide digital display with keypad: speedometer, tachometer, odometer, trips and hour meters, fuel, gear position, SPORT/ECO™ mode, seat belt and 4 x 4 indicator, front and rear di . lock indicators, diagnostics, clock, battery voltage, engine temperature, DPS mode |
| Magneto | 850 W |
| Instrumentation | Lighter-type DC outlet in central console |
| Anti-theft System | RF Digitally Encoded Security System (D.E.S.S.™) with Start/Stop button |
| Lighting | LED headlights and tail lights with unique Can-Am LED signature |
| Winch | 4,500 lb (2,041 kg) winch with synthetic rope |
| Protection | Front bumper Half doors Front and rear tow hooks HMWPE full skid plate |
| Liquid Titanium & Magma Red |
